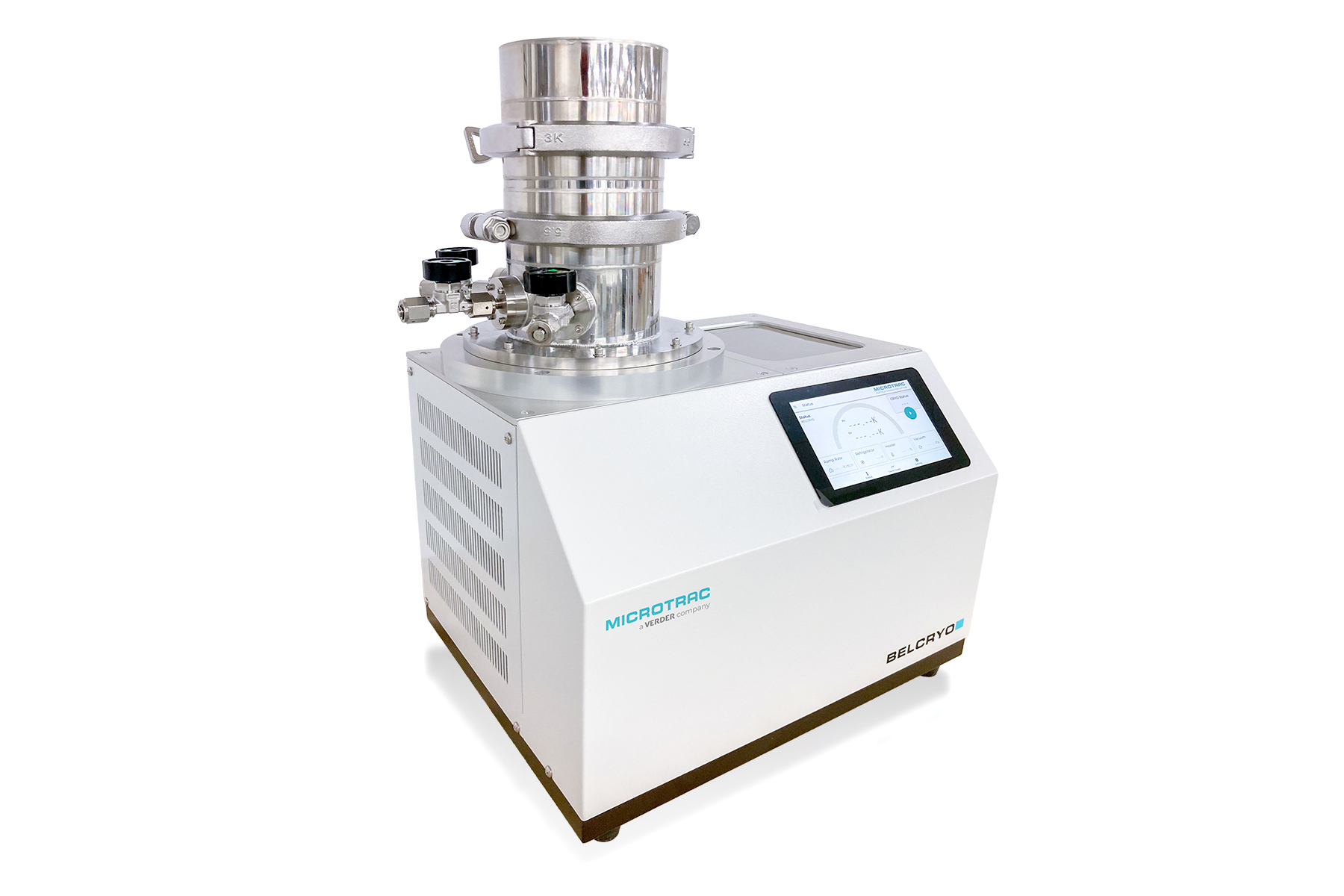

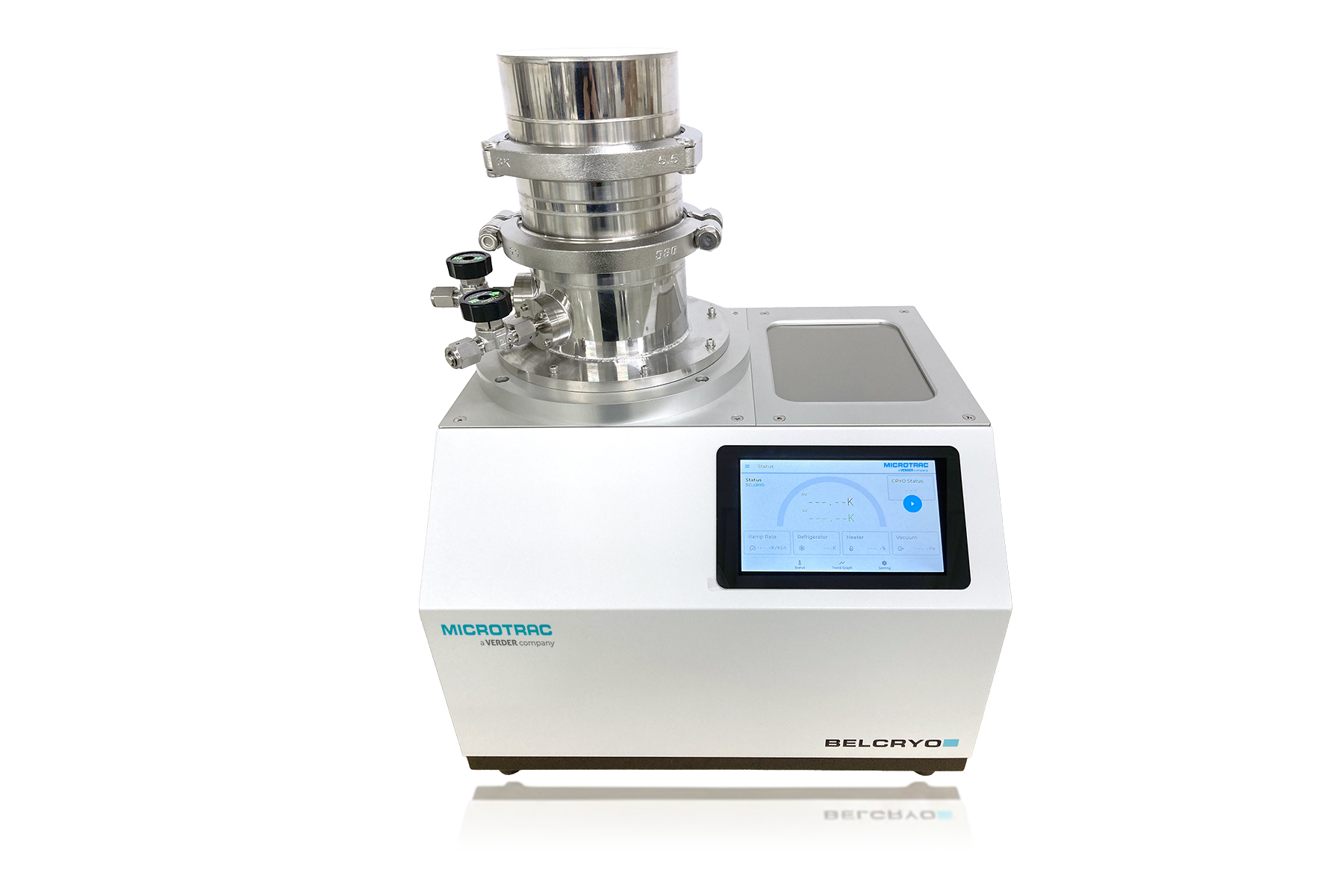

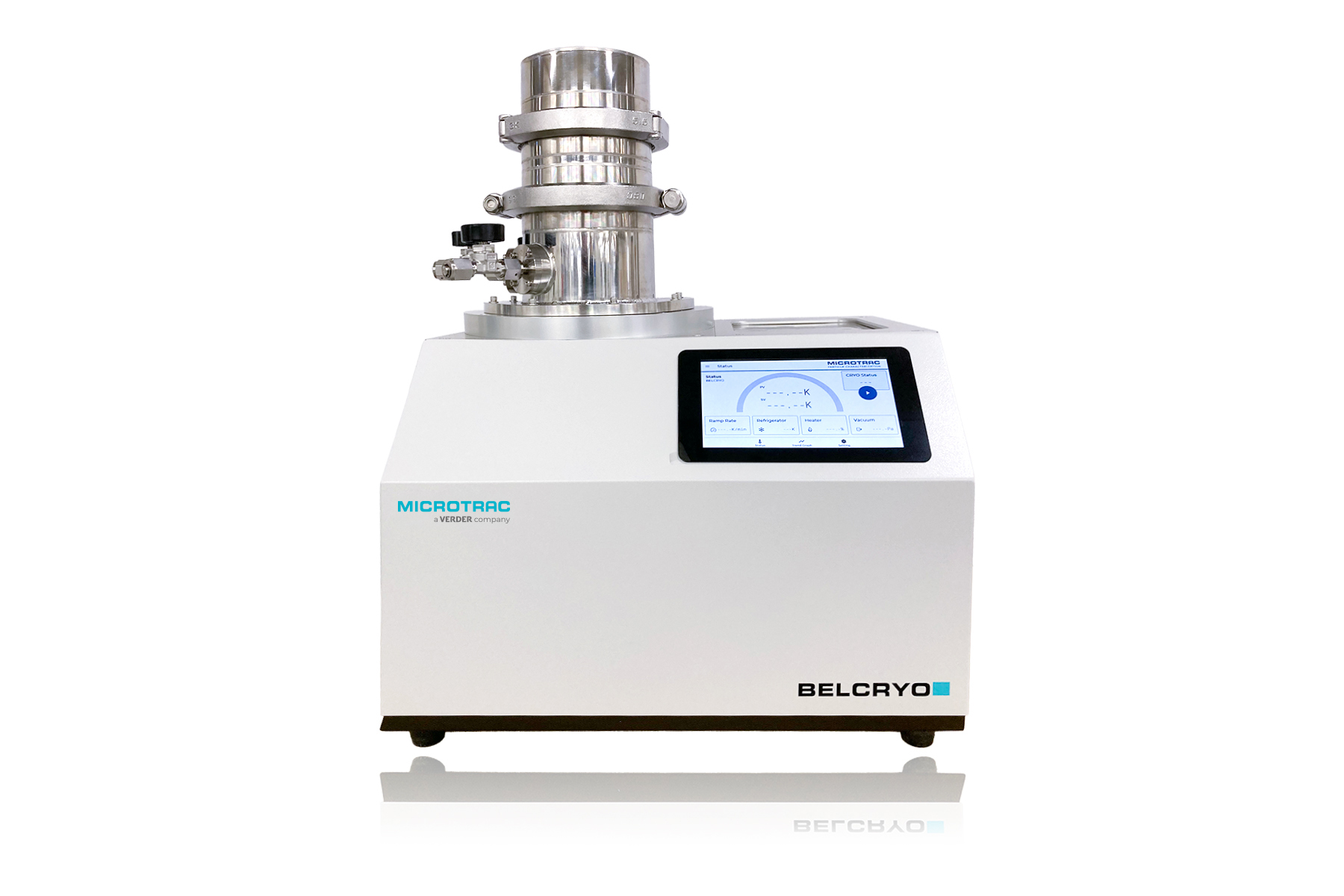

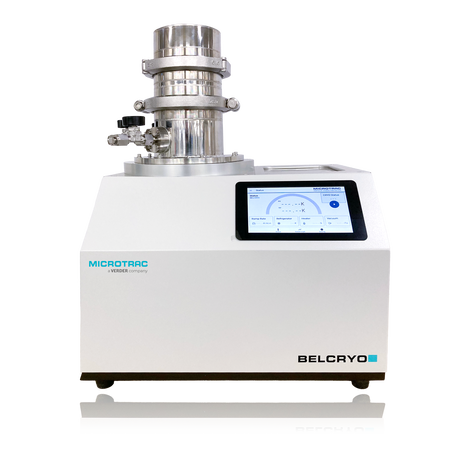

The MICROTRAC BELCRYO X is engineered for exceptional performance in cryogenic gas adsorption experiments, offering wider temperature control, greater stability, and enhanced measurement repeatability. Optimized for BET surface area and pore size distribution, heat of adsorption, gas storage and separation research, and advanced material characterization, BELCRYO X provides a stable, precisely controlled low-high temperature environment essential for accurate adsorption analysis.

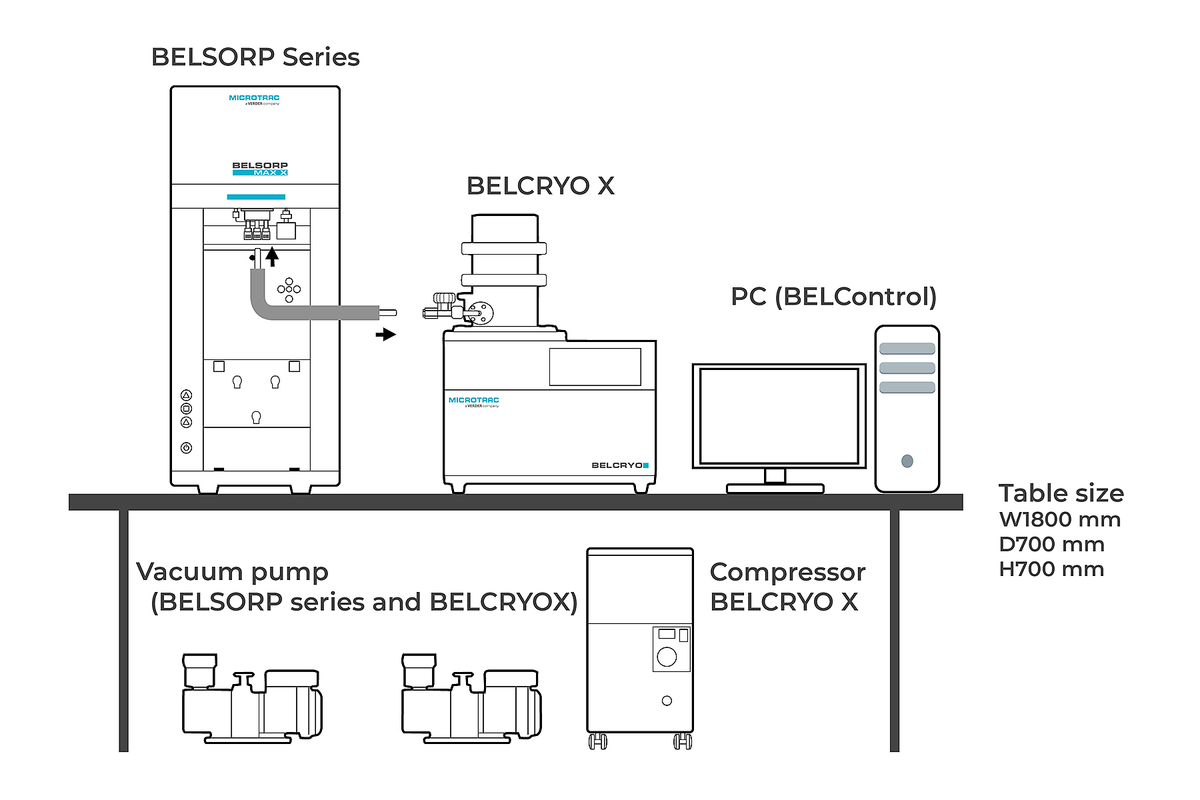

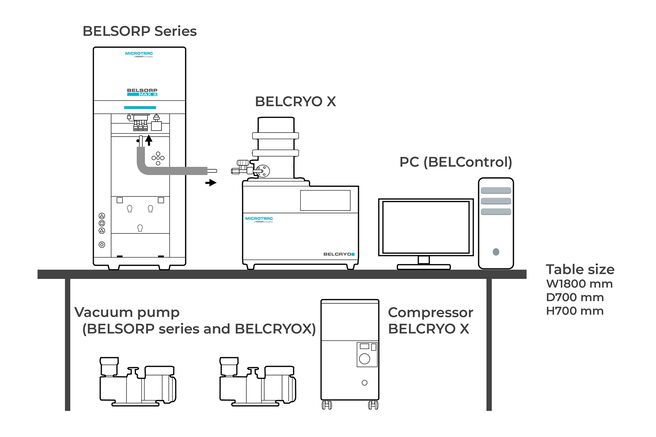

Its robust design ensures smooth integration with the BELSORP series, enabling seamless operation from pretreatment to measurement across standard gas adsorption measurement and quick BET measurement modes. With automated higher safety functions, high-resolution temperature stability, and compatibility with a broad range of sample types, BELCRYO X supports both routine quality control and advanced R&D applications.
Whether for performance evaluation of porous materials such as active carbon, zeolite, and MOF / PCP, BELCRYO X delivers meticulous control over experimental conditions, reducing variability and improving data reproducibility.
高精度低温装置 BELCRYO X Wider Control – Greater Stability – Optimized for Adsorption Experiments
- Wide Temperature Control: Enables broad temperature control for optimal adsorption conditions without the need for coolants such as liquid nitrogen (35 K to 473 K)
- Excellent Temperature Stability: Maintains target temperature with outstanding stability during long measurements (±0.001 K to ±0.01 K)
- Unlimited Adsorption Measurement Time: No time restrictions, allowing completion of various adsorption measurements
- Simultaneous Measurement of Three Samples: Up to three samples can be measured at the same time
- Integration with BELSORP Series: Achieves seamless, fully automated measurement from pretreatment to analysis using BELControl software dedicated to the BELSORP series
- Safety Features: Fail-safe safety measures during low- to high-temperature control
- Easy Sample Handling: Simple loading and removal of samples
- At-A-Glance Monitoring: An intuitive LCD touch panel display provides real-time visibility of the control temperature, vacuum level of the vacuum-insulated chamber, and the status of the heaters and the cryocooler.
- Seamless Measurement: Fully automated operation from pretreatment to measurement can be performed through the dedicated BELControl software for the BELSORP series
高精度低温装置 BELCRYO X 附件和选项
The following consumables for BELCRYO X to measurements:

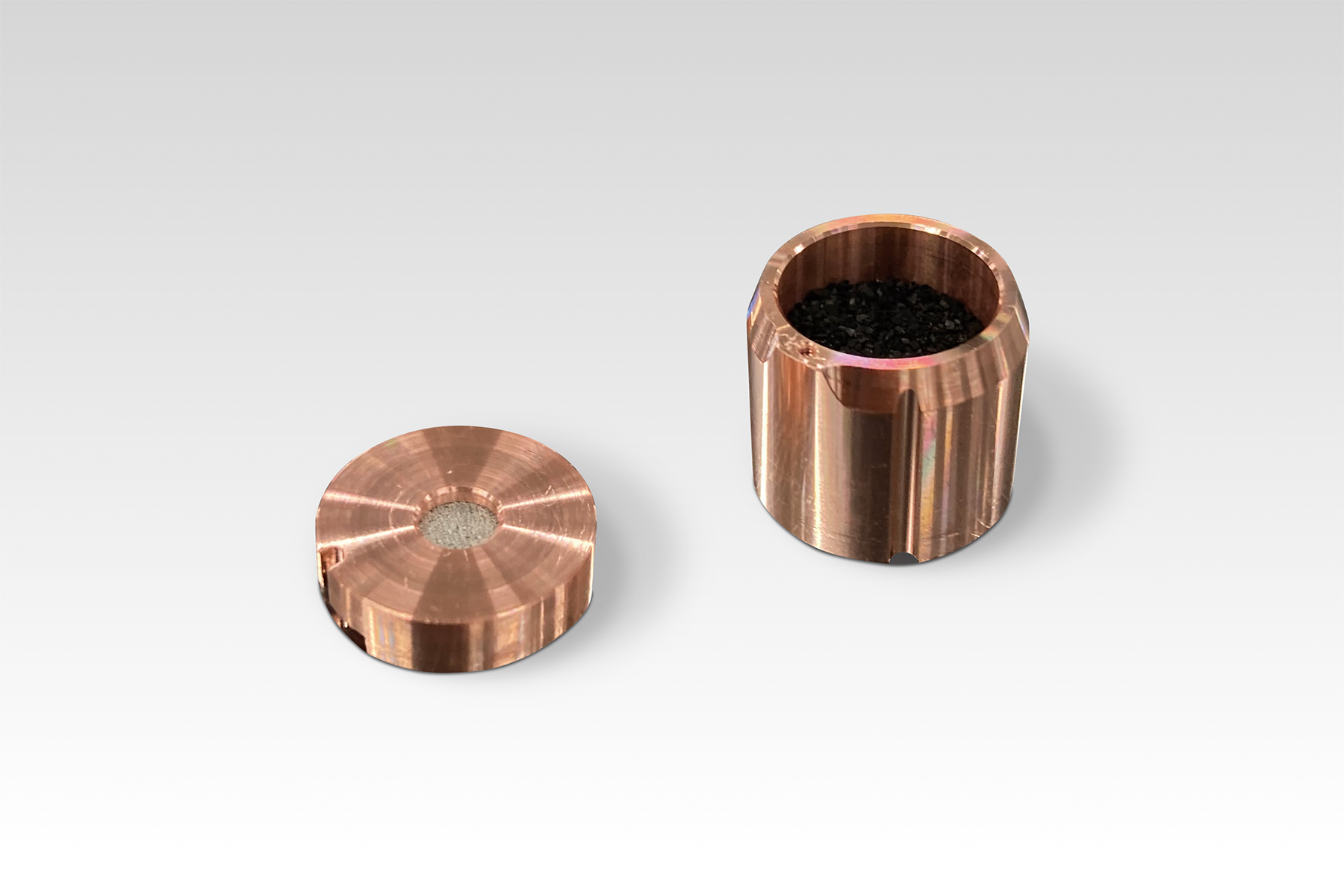

Cryo-Sample Cells – This sample cell is specifically designed for use with BELCRYO X and is ideally suited for powder and pellet samples

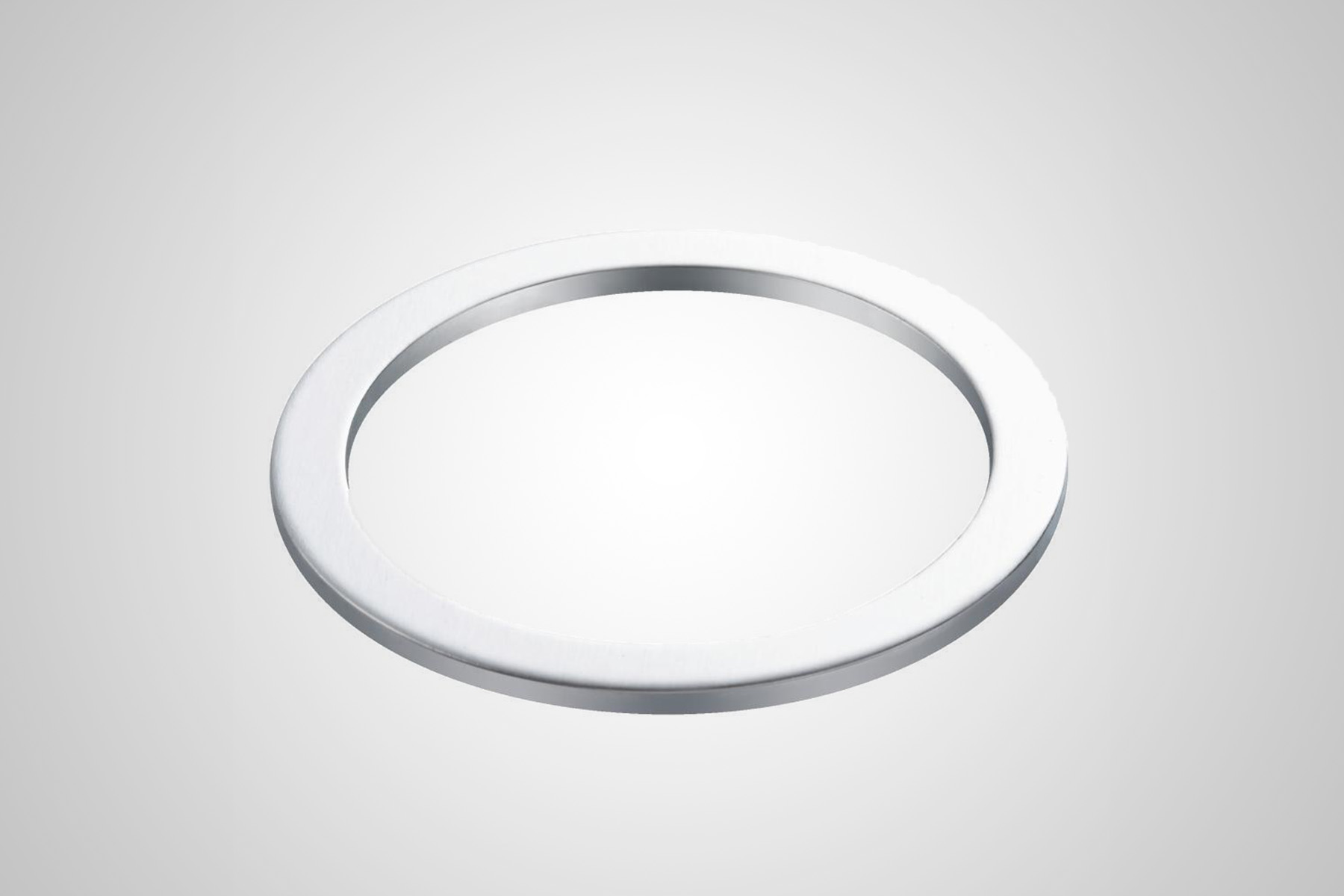

Aluminium Gasket – Use aluminium gaskets to prevent leaks at the sample port
快速 BET 测量 &评估软件 BELCONTROL

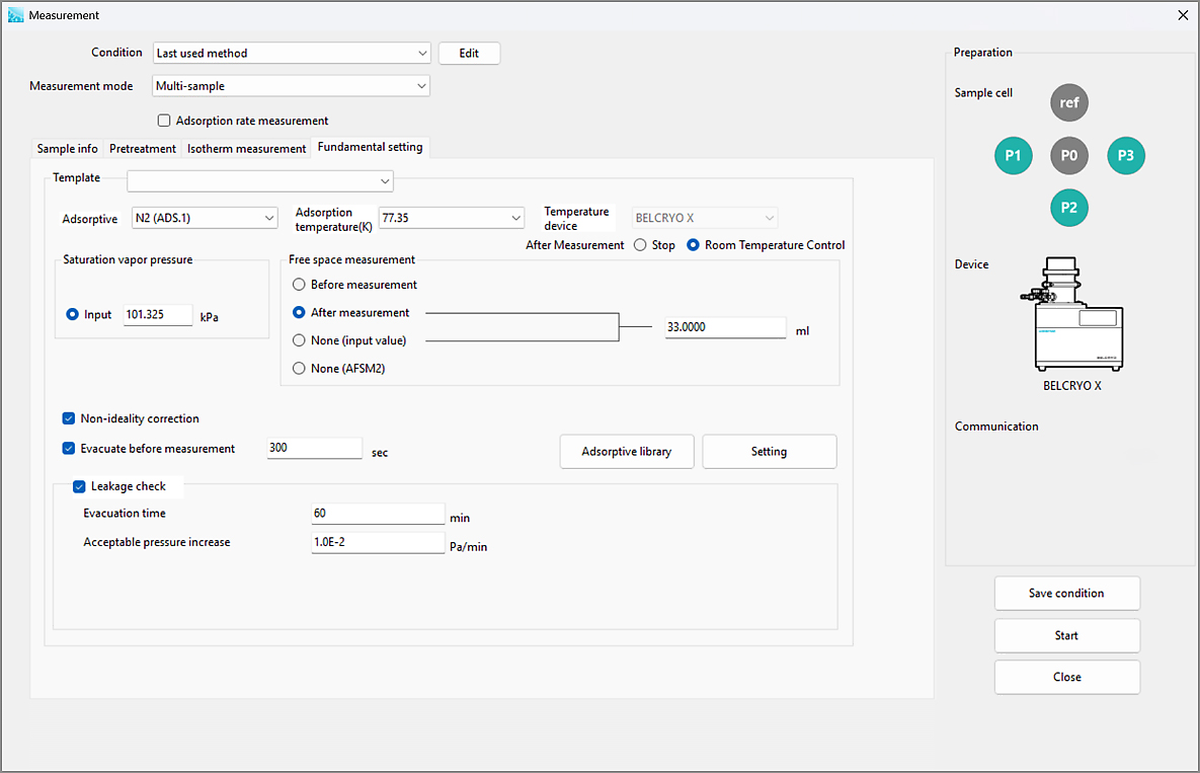

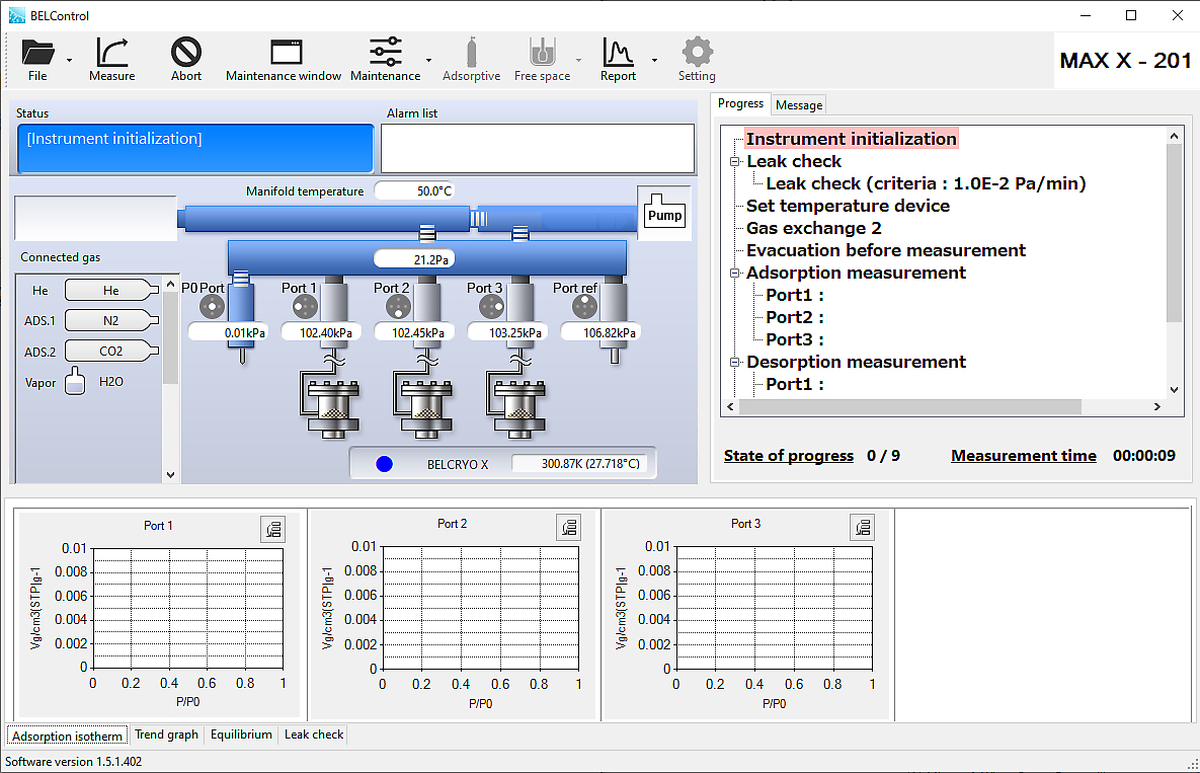

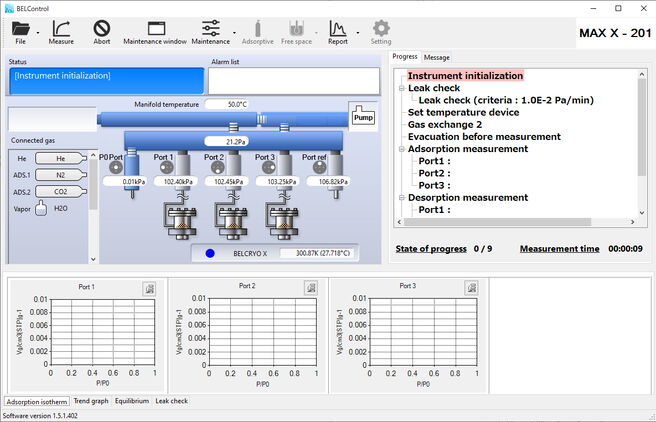

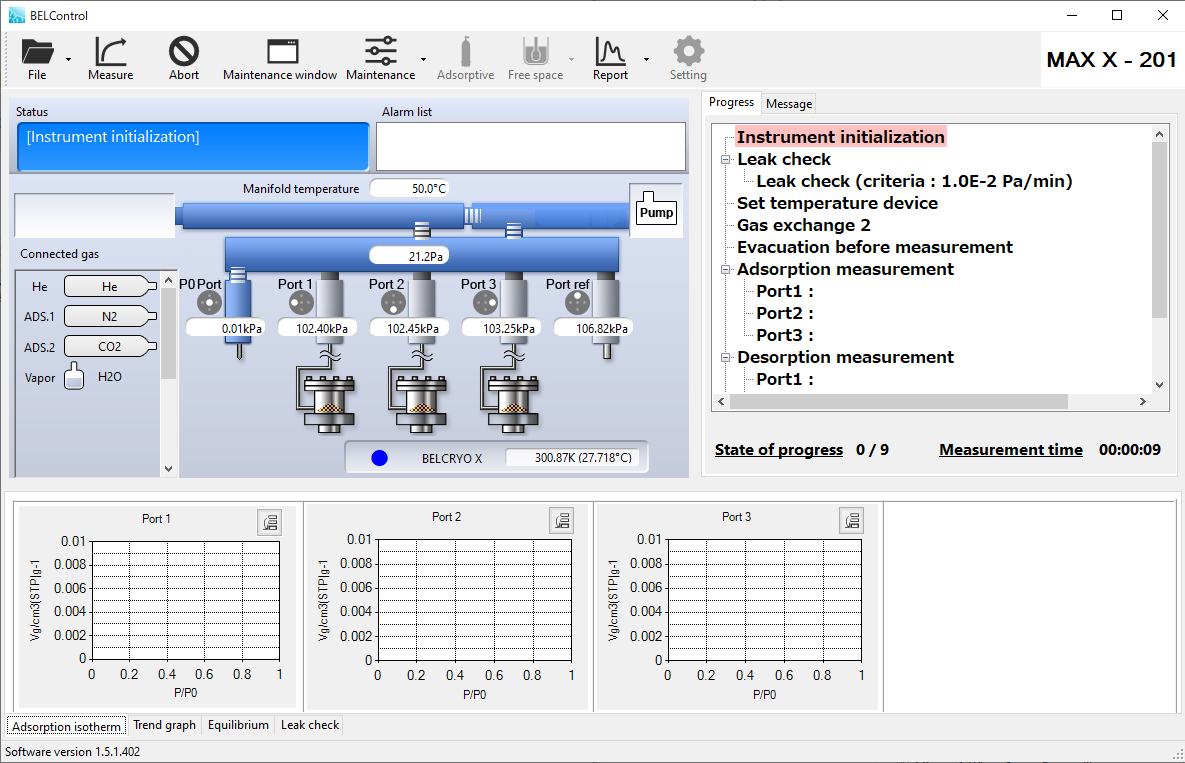

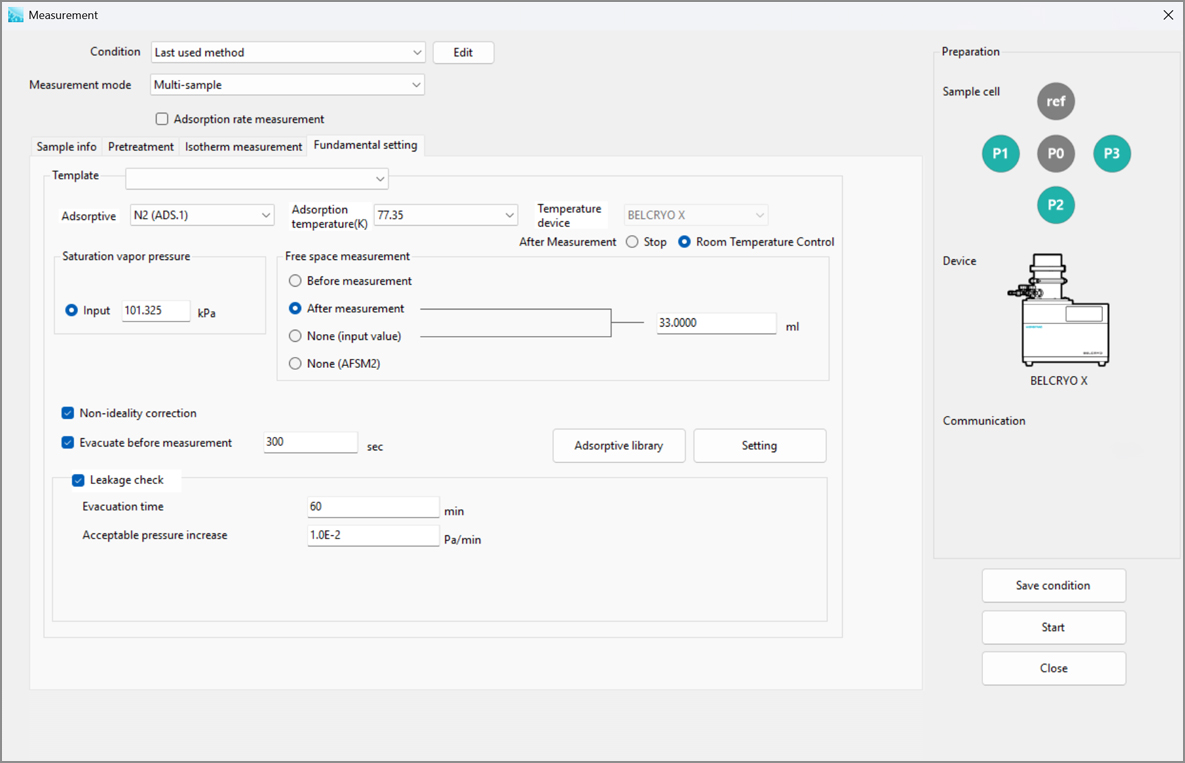

BELCRYO X operates via the BELControl software platform, common to all BELSORP series (BELSORP MAX X, HP/HT, MAX G, MINI X).
Main functions include:
- Cryo-sample cell edition settings
- Measurement parameter settings for determination of specimens’ numbers, pretreatment condition, measurement pressure regions (ads/des)
- Fully automatic seamless measurement from pretreatment to measurement
- Graphical display of temperature stability and adsorption/desorption isotherms
高精度低温装置 BELCRYO X 典型应用
- Characterization (BET surface area, pore size distribution, and isosteric heat of adsorption) of various kinds of materials (MOF/PCP, carbons, zeolites, catalysts, and battery materials)
- Various kinds of gas adsorption/desorption isotherms at various temperatures are studied
- Gas storage (CCS/CCUS) at cryogenic temperature and gas separation examination at various temperatures (PSA/TSA/PTSA)
- Simultaneous structural analysis via XRPD and gas adsorption measurements
用例

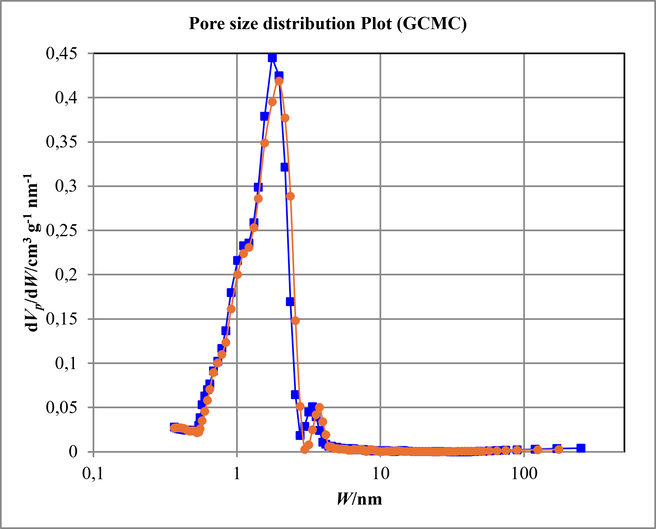

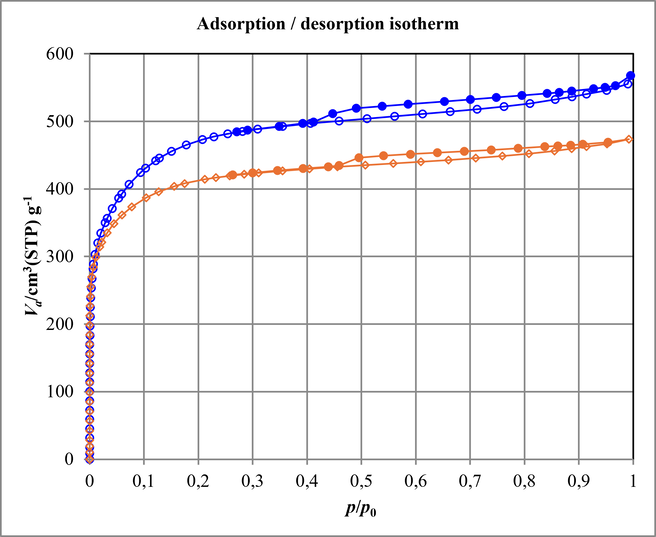

A wide range of adsorption isotherms can be measured under various temperature conditions (e.g., N2 at 77.4 K, Ar at 87.3 K, CO2 at 273 K), which can be directly used for BET surface area determination and pore size distribution analysis using advanced GCMC / QSDFT models.
A wide range of adsorption isotherms can be measured under various temperature conditions (e.g., N2 at 77.4 K, Ar at 87.3 K, CO2 at 273 K), which can be directly used for BET surface area determination and pore size distribution analysis using advanced GCMC / QSDFT models.

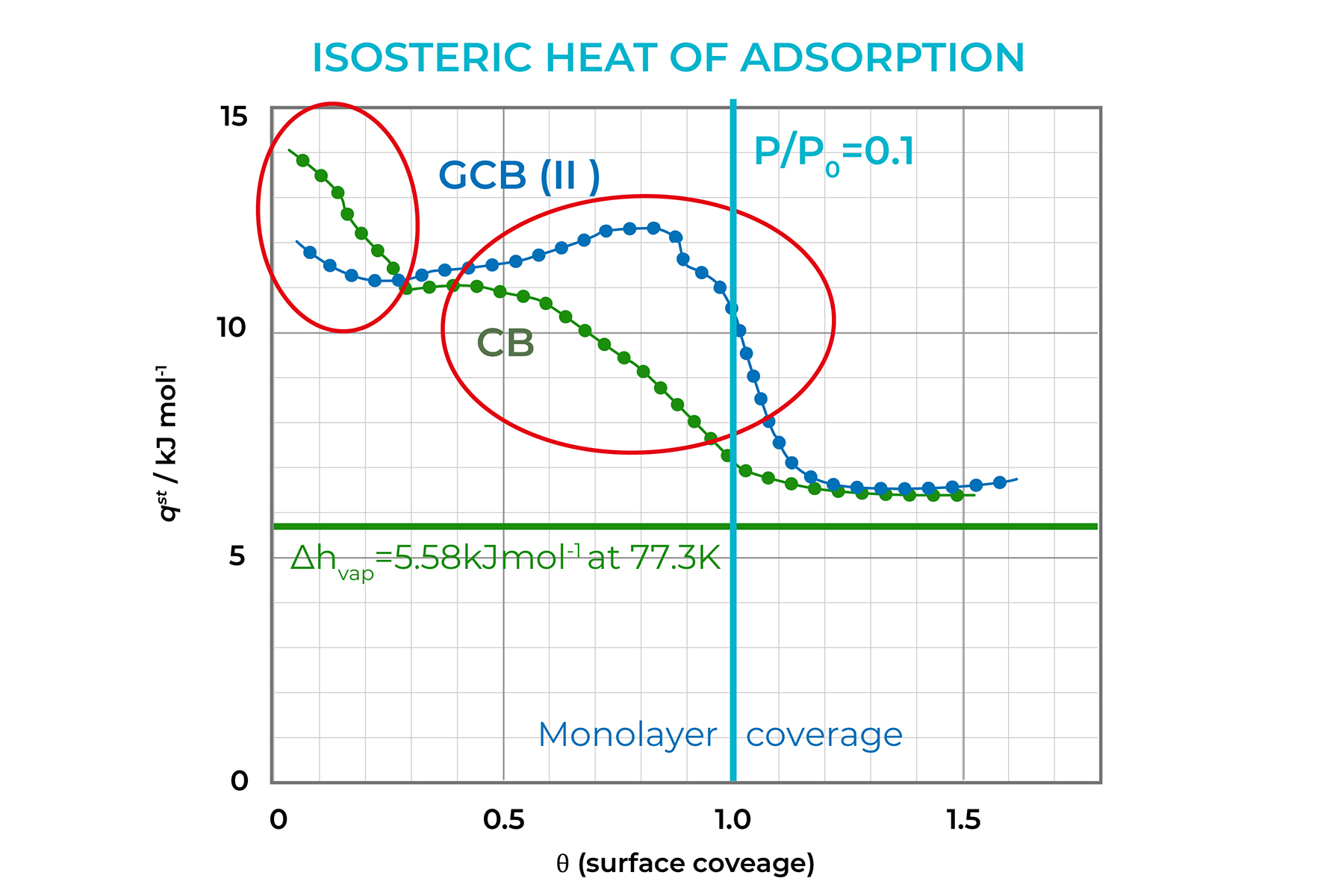

With conventional methods, evaluating the isosteric heat of adsorption at cryogenic temperatures required multiple adsorption isotherms within a narrow temperature range, which was technically challenging and time-consuming. BELCRYO X revolutionizes this process by enabling precise measurements at arbitrary temperatures for various gases—making accurate isosteric heat evaluation simpler, faster, and more flexible than ever before.
Example: N2 isosteric heat evaluation at 77.4 K using adsorption isotherms at 77.4 K, 82.4 K, and 87.4 K.

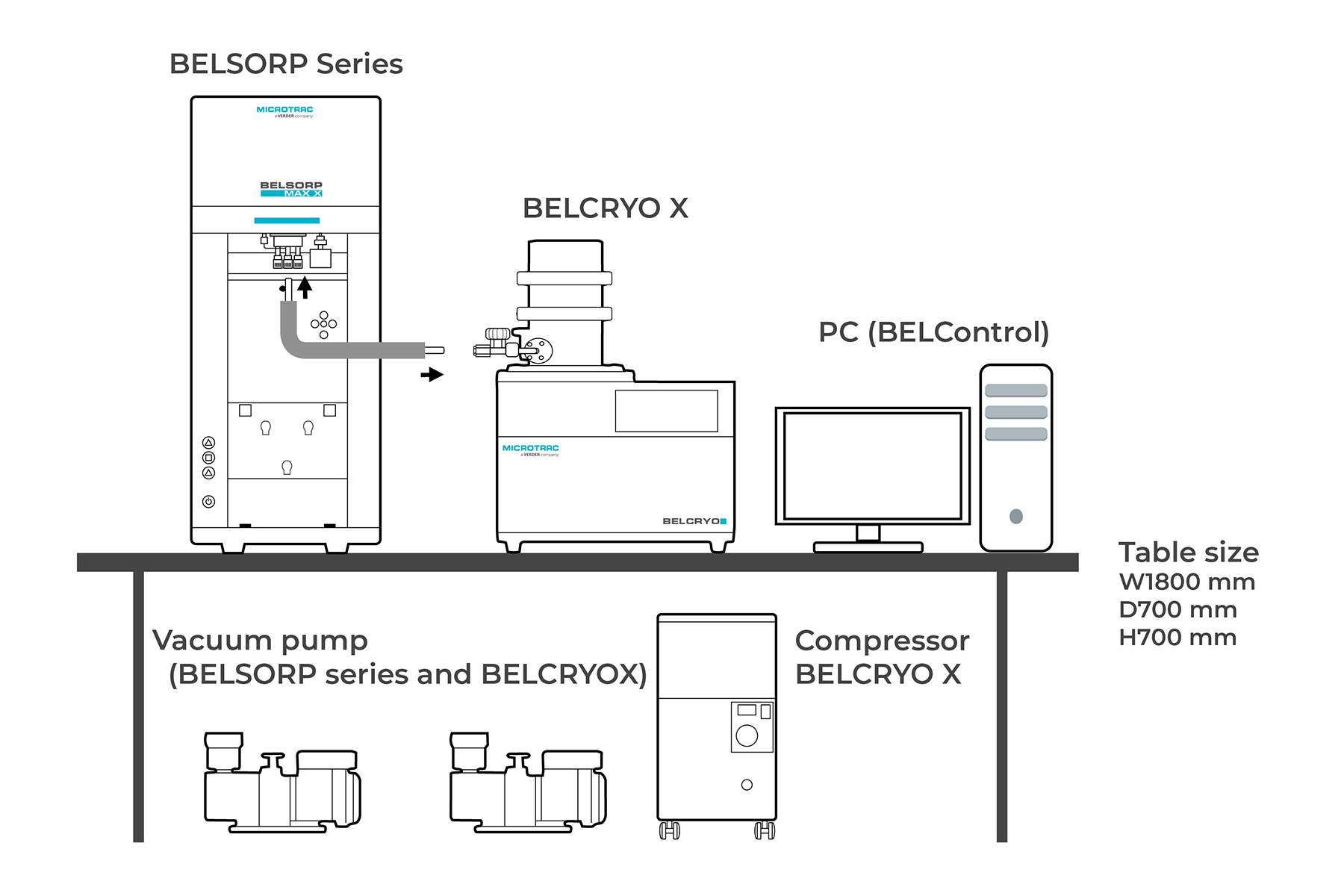

By combining BELCRYO X with instruments such as the BELSORP MAX X HP, a wide range of gas adsorption isotherms – including hydrogen and methane storage studies and CO2 separation – is obtainable across a broad temperature range and pressure conditions, from cryogenic to high temperature and from low to high pressure.

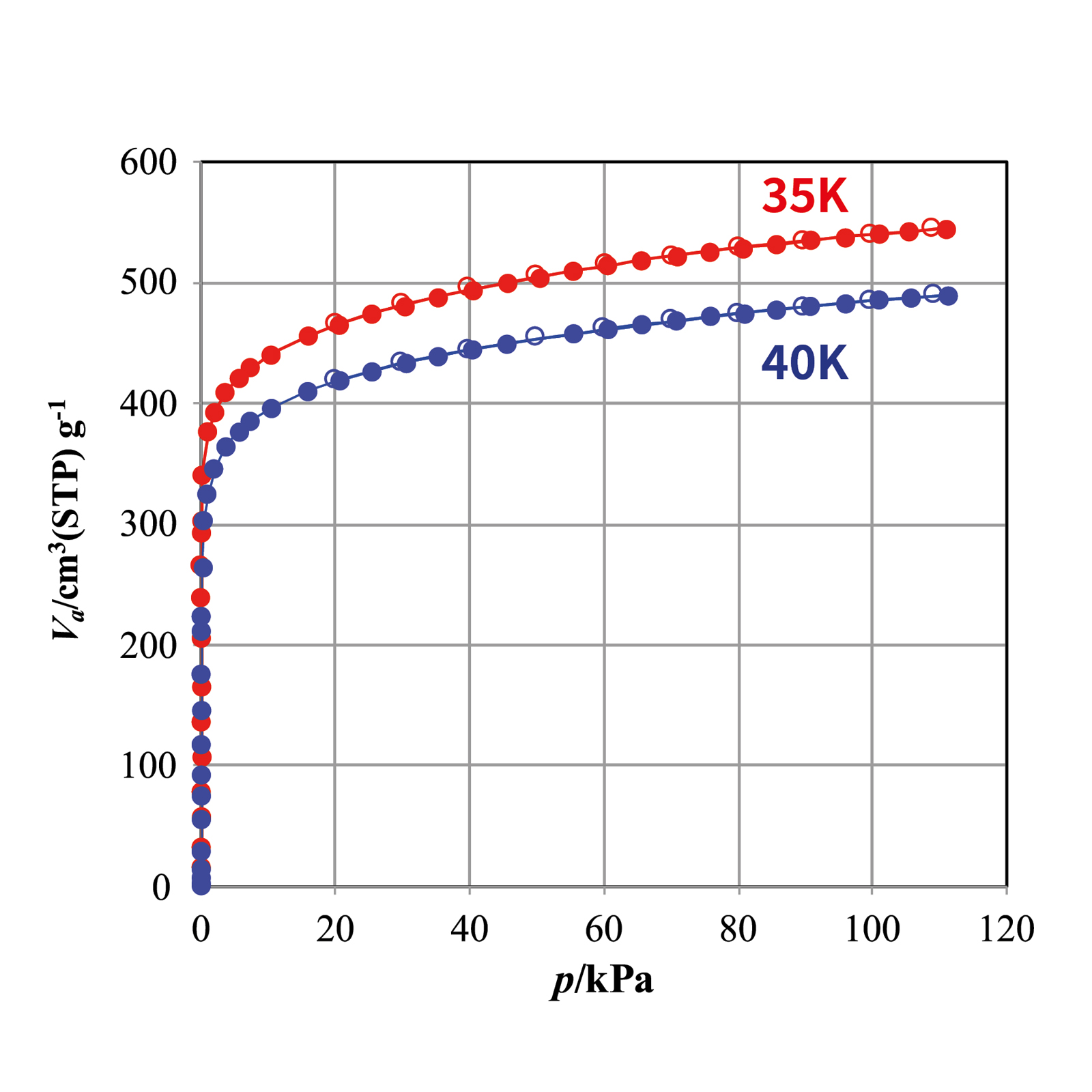

Adsorption isotherm of activated carbon @ 35 K / 40 K

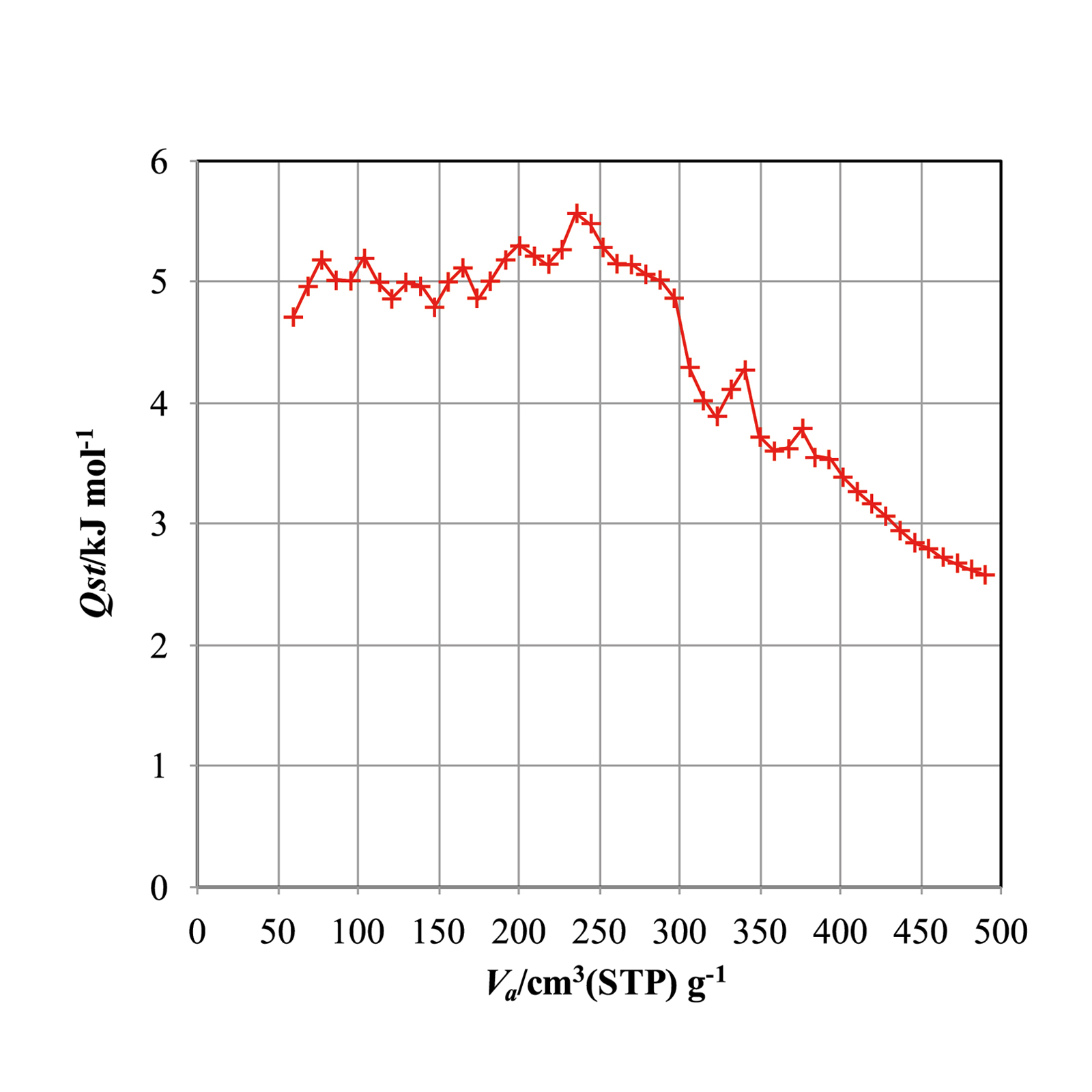

Isosteric heat of H2 adsorption for activated carbon
若要為您的顆粒特性分析需求找到最佳解決方案，請瀏覽我們的應用資料庫。
高精度低温装置 BELCRYO X 技术参数
| 温度范围 | 35~473K |
|---|---|
| Temperature Stability | ±0.001K~0.01K |
| Cooling Medium | Helium gas (filled in a compressor) |
| Compatibility | BELSORP Series |
| 设备尺寸（宽x高x深） | W 450 × D 360 × H 590 mm (excluding connectors and fittings) |
| 重量 | Approx. 50 kg |
| Power Requirement | 1200 VA, AC 100-240 V (50/60 Hz) Service Outlet Capacity Max 600 W (for pump) |
| CE Certification | 是 |
